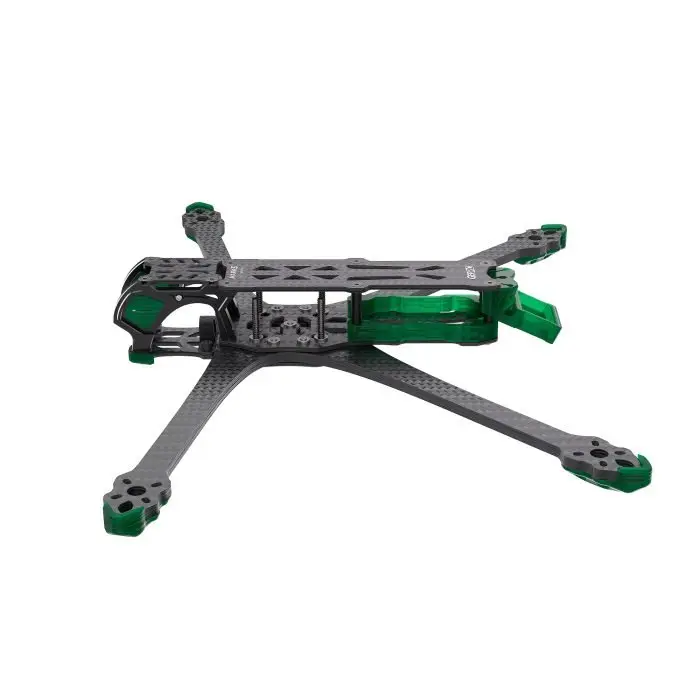

GEP MKD 7inch Frame( 7inch)

MK5D-LR7 is a 7-inch model upgraded based on the MARK5. The strength of the arm structure is optimized, without losing the original design style, while the strength is higher, and the flight fault tolerance rate is improved.
₹ 9,200.00 ₹ 9,200.00 Tax Excluded

This combination does not exist.

geprc 7 inch frame gep mkd 7 inch geprc 7 inch

MK5D-LR7 Long Range 7-Inch Frame

Summary

MK5D-LR7 is a 7-inch model upgraded from the MARK5. The arm structure is optimized for greater strength while keeping the original design style. This results in a higher tolerance for flight faults.

The DC structure provides a wide, unobstructed viewing angle, ideal for O3 onboard recording. Specially designed TPU parts secure the O3 VTX while allowing for proper airflow and heat dissipation.

The MK5D-LR7 includes two 3D-printed camera bases, compatible with GoPro (all models), Naked GoPro 8/10, Insta360 GO2, and Caddx Peanut — ready to capture every epic moment of your flight.

This frame is built for adventurers who want to explore nature’s laws and fly across mountains and rivers.

Specifications

  • Frame: GEP-MK5D-LR7
  • Dimensions: 230mm × 350mm × 43mm
  • Wheelbase: 335mm
  • Top Plate: 2.5mm
  • Bottom Plate: 2.5mm
  • Arm Plate: 6.0mm
  • FC Mounting: 30.5×30.5mm / 25.5×25.5mm
  • VTX Mounting: 30.5×30.5mm / 25.5×25.5mm / 20.5×20.5mm
  • Camera Mount: 19–20mm
  • Propeller: 7-inch
  • Weight: 230g

Features

  • Durable aluminum alloy lens side plates for enhanced visual impact
  • Reinforced arms for improved strength without sacrificing design
  • DC layout frame ideal for long-range flight
  • Unique shock-absorbing design for stability and reduced vibrations
  • Dedicated capacitor and buzzer housing ensures flight stability
  • Supports full-size and naked GoPros, Insta360 GO2, and Caddx Peanut
  • Compatible with 16x16mm and 19x19mm motor mounting holes

Includes

  • 1 × GEP-MK5D-LR7 Frame
